Deterministic industrial intelligence

One verified model.
Every control target.

Define the process once. Oliver OS builds the authoritative engineering model, validates every physical channel and generates reviewable PLC projects without giving AI direct control authority.

LeoAIreasons
Oliver OSmodels
Digital twinverifies
Policy gateauthorises
FPGA runtimeexecutes deterministically

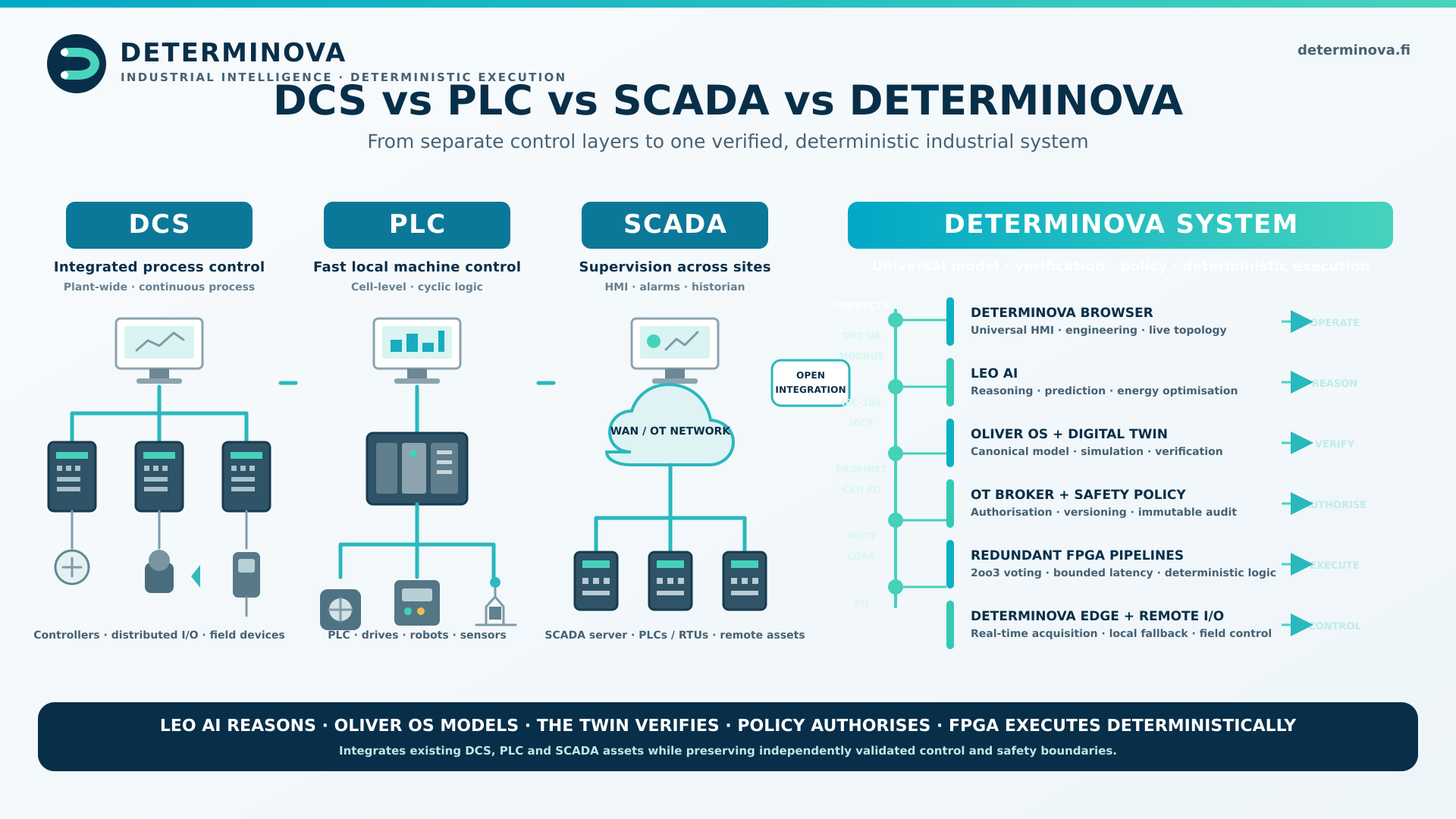

Architecture overview

DCS, PLC and SCADA — unified by Determinova.

The Browser operates. Leo AI reasons. Oliver OS models. The digital twin verifies. Policy authorises. Redundant FPGA pipelines execute deterministically at the edge.

Open Determinova BrowserExisting validated control and safety boundaries remain independent.

OperateDeterminova BrowserReasonLeo AIVerifyOliver OS + digital twinAuthoriseOT Broker + policyExecuteRedundant FPGA pipelinesControlEdge + remote I/O

InputComplete

Typed modelComplete

ValidateComplete

Human reviewRequired

GenerateLocked

Project DEG-0001 · revision 03

Data centre cooling pump cell

Canonical model is internally consistent

1Project2Outputs3Review

Project definition

Authoritative source data

Validated

Project nameUse the name operators already know.Controller familySelect the primary deployment target.

Advanced settings20 ms · Basic engineering

Cycle targetEngineering profile

Signals82 AI · 5 DI · 1 DO

Hardware objects6Typed & allocated

Rule setv0.4.0SHA-256 pinned

Next stepChoose program outputs

Program outputs

4 targets selected

TIA Portal projectS7-1200/1500 · SCL + Openness bundleSiemensStructured TextIEC 61131-3:2025 portable STIECLadder DiagramPLCopen XML / IEC 61131-10LDFunction Block DiagramPLCopen XML / IEC 61131-10FBDSequential Function ChartPLCopen XML sequence structureSFCOpenPLC packageRuntime v4 project + located variablesOpenDeterministic Edge APIAvailable in Forge BuilderBuilderLegacy STL / AWLNot supported by selected CPULegacy

Assurance gate

Deployment authority

Human review

Schema validationAll objects typed

Physical allocationNo channel conflicts

Semantic constraintsSignal direction verified

4Engineering review recordReviewer acknowledgement required

5Independent policy approvalLocked until target evidence exists

Safety is a separate lifecycle. AI cannot assign SIL or generate an approved F-program without SRS, HAZOP/LOPA and verification evidence.

Object-backed hardware configuration

Devices & network

3 devices · 3 I/O modules · 0 conflicts

HWHardware configurationDEG-0001 · DC cooling pump cell

Swipe diagram horizontally

PN/IE_1 · PROFINET · VLAN 110

MRP ring · recovery ≤ 200 ms

PROFINET24 VDC A+BValidated

Topology internally consistentPROFINET IO system_1Revision 3

Physical hardware compiler

I/O allocation preview

0 errors · 1 review notes

Engineering tag	Type	IEC address	Physical binding	Validation
PUMP_101_RUNNING_FB	DI	%I0.0	ET200SP-01 · S1 · Ch0	Valid
PUMP_101_FAULT_FB	DI	%I0.1	ET200SP-01 · S1 · Ch1	Valid
CONTROL_ENABLE	DI	%I0.2	ET200SP-01 · S1 · Ch2	Valid
PUMP_101_START_REQ	DI	%I0.3	ET200SP-01 · S1 · Ch3	Valid
PUMP_101_STOP_REQ	DI	%I0.4	ET200SP-01 · S1 · Ch4	Valid
PUMP_101_START_CMD	DO	%Q0.0	ET200SP-01 · S2 · Ch0	Valid
PUMP_101_CURRENT	AI	%IW64	ET200SP-01 · S3 · Ch0	Valid
PT_101_PRESSURE	AI	%IW66	ET200SP-01 · S3 · Ch1	Valid

Generation is reproducible.Ready for deterministic validation

warningHIL_REQUIRED

Generated control logic has not been executed against physical hardware.

Run target compilation, simulation, HIL and fault-injection tests.

infoDRAFT_ONLY

Generation is limited to a reviewable draft package.

Complete independent review, target compiler checks and policy approval before deployment.

Forge Assure regression guardrail

8/8 known failure modes blocked

All passing

RV-01Start command incorrectly modelled as an inputCOMMAND_DIRECTION

RV-02Digital input represented in a word areaADDRESS_AREA_INVALID

RV-03Analog input starts at an odd byteADDRESS_AREA_INVALID

RV-04Analog input placed in an output wordADDRESS_AREA_INVALID

RV-05Channel number exceeds module capacityCHANNEL_OUT_OF_RANGE

RV-06Two signals share the same physical channelDUPLICATE_CHANNEL

RV-07Safety classification has no lifecycle evidenceSAFETY_EVIDENCE_REQUIRED

RV-08Ring network lacks a redundancy protocolRING_PROTOCOL_MISSING

Explicit engineering domains

Network, redundancy and provenance

Port-level network

Every cable terminates at an explicit managed port. The sample uses VLAN 110, PROFINET and an engineered MRP ring.

Nodes: 3
Links: 3
Recovery: 200 ms

Structured redundancy

Redundancy is a typed set of controller, network, I/O and power failure domains—not a free-text label.

Controller: none
Network: MRP
Power: A+B

Provenance chain

The model, ruleset, targets and derived files receive stable identifiers. Changed engineering input produces a new build ID.

Revision: 3
Status: validated
Authority: draft only
